VPP VIDEO PATCHBAY SERIES
JACK PANELS
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information

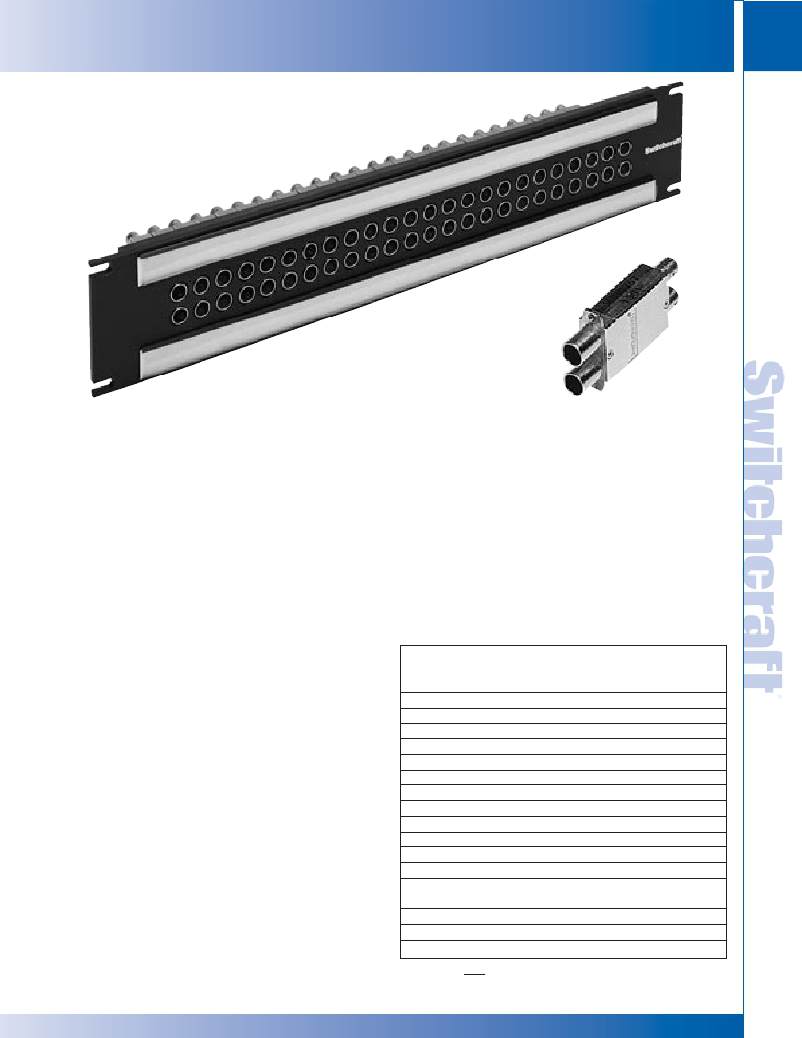

VPP VIDEO PATCHBAY SERIES
VPP24K3HD75T
VJHD*75TX
The VPP Series video patchbays offer a wide variety of options for video patching.
The HD Series meets SMPTE 292M specifications for high definition video signaling,
covering a bandwidth range from DC to 2.4GHz. The SD Series is perfect for serial
digital, with a bandwidth from DC to 1.75GHZ. Both come in either terminated or
non-terminated, 24 or 26 jacks, 1.75" or 3.5" heights.
193
FEATURES AND BENEFITS
? HD Series meets SMPTE 292M Specifications
? SD Series has a bandwidth from DC to 1.75GHz
? Black thermoplastic modules insulate
jacks from chassis
? Jacks feature rugged heavy duty housings
VIDEO JACK SPECIFICATIONS
ELECTRICAL
Rated Bandwidth: 2.4 GHz (HD), 1.75 GHz (SD)
ENVIRONMENTAL
Operating Temperature: – 40oC to 65oC
Storage Temperature: – 55oC to 85oC
Thermal Shock: Per MIL-STD-202, Method 107
Moisture and Humidity:
Per MIL-STD-202, Method 106
Characteristic Impedance: 75 ohms
Return Loss: Better than –15 dB
Insertion Loss: Better than –.5 dB
Contact Resistance: Less than 20 milliohms
Termination Resistance: 75 W, ±1%
Ordering Information
Part Type of No. of
Number Jack Jacks Height
VPP24K1HD*75T HD 24 1.75"
Description
Terminated
Center Conductor: Accepts .090 pin diameter
MECHANICAL
Mechanical Shock: Per MIL-STD-202, Method 213,
Test condition I
Vibration: Per MIL-STD-202, Method 201
Insertion Force: 12 lbs. maximum
Withdrawal Force: 3 lbs. minimum
Life Cycle: 30,000
MATERIAL
Housing: Zinc alloy, nickel plated
Center Contacts: Copper alloy, gold plated
Switching Springs: Copper alloy, gold plated
Grounding Contacts:
HD Series - Copper alloy, gold plated
SD Series - Copper alloy, nickel plated
VPP24K1HD*NT
VPP24K1SD*75T
VPP24K1SD*NT
VPP26K1HD*75T
VPP26K1HD*NT
VPP26K1SD*75T
VPP26K1SD*NT
VPP24K3HD*75T
VPP24K3HD*NT
VPP24K3SD*75T
VPP24K3SD*NT
VPP26K3HD*75T
VPP26K3HD*NT
VPP26K3SD*75T
VPP26K3SD*NT
HD 24 1.75"
SD 24 1.75"
SD 24 1.75"
HD 26 1.75"
HD 26 1.75"
SD 26 1.75"
SD 26 1.75"
HD 24 3.5"
HD 24 3.5"
SD 24 3.5"
SD 24 3.5"
HD 26 3.5"
HD 26 3.5"
SD 26 3.5"
SD 26 3.5"
Non-term
Terminated
Non-term
Terminated
Non-term
Terminated
Non-term
Terminated
Non-term
Terminated
Non-term
Terminated
Non-term
Terminated
Non-term
Insulators: Thermoplastic, UL 94V-0 rated
*Add “N” for non-normalled version
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
